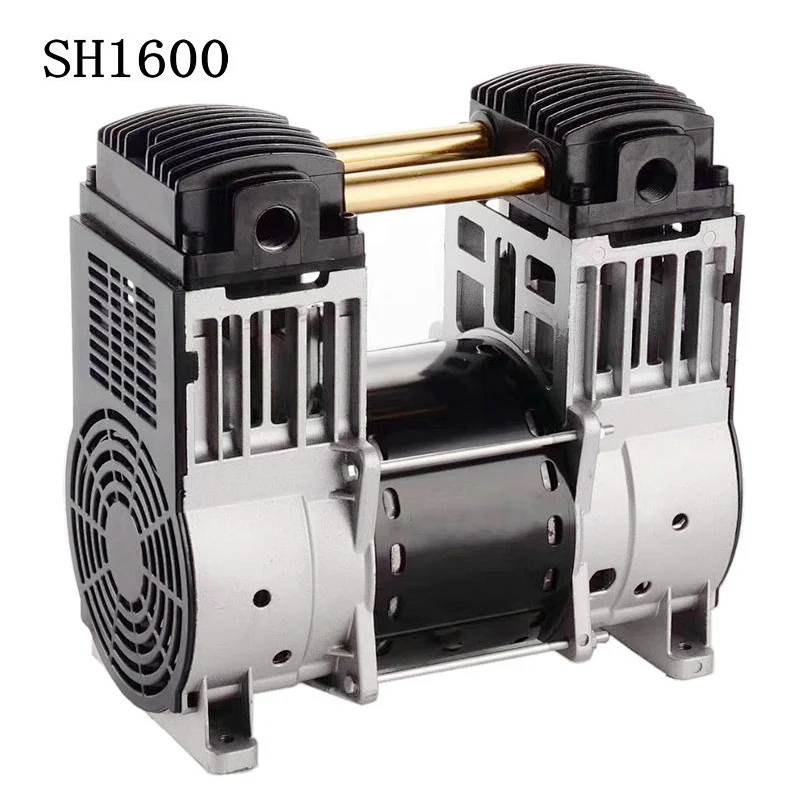

SH1600 1600w AC oil free silent electric air compressor head power

ITEM NO

RH1600-6

Air flow rate
(L/min@bar)

Technical Specification

Name

Oil free air compressor

324 L/min@0 bar
240 L/min@2 bar
210 L/min@4 bar
189 L/min@6 bar
140 L/min@8 bar

Voltage :100V 110V/120V/220V/230V/380V ;
Power: 1600 W ;
Pressure : Continuous 7.0 bar ;
Intermittent : 8.0 bar ;
Restart : 1.0 bar
Noise : ≤70dB(A) ;
Speed: 1440rpm / 1700rpm ;
Temperature : -5℃-40℃;
Thermal protector : 135℃

WithOvercurrent overload protector

Packing

2 pcs /carton

Dimension

305*156*288 mm

Weight

18 kg
