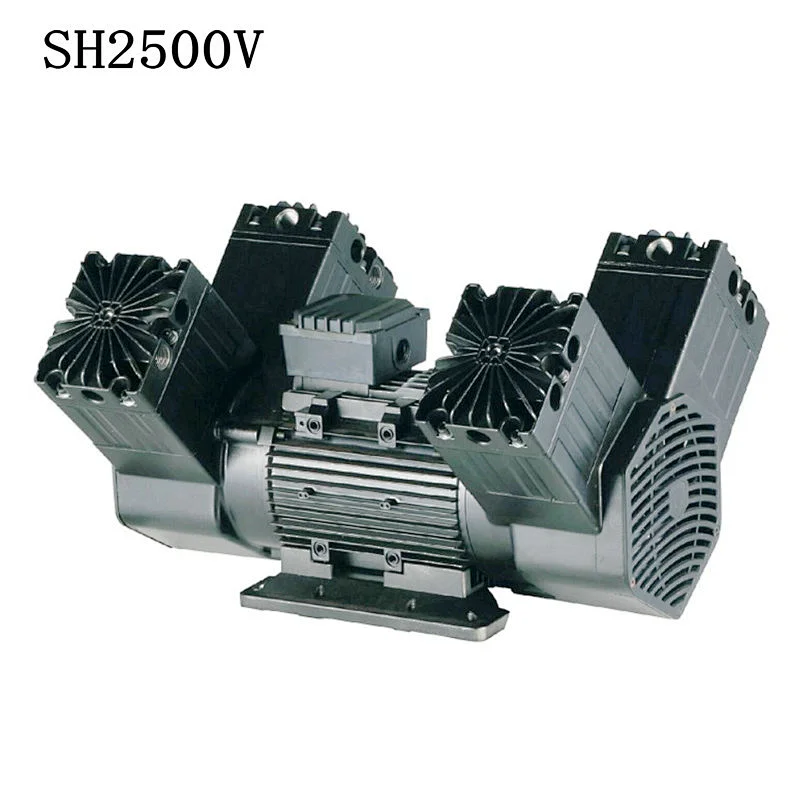

SH2500V 2500W AC oil free silent electric air compressor head power

ITEM NO

RH2500V-6

Air flow rate
(L/min@bar)

Technical Specification

Name

Oil free air compressor

750 L/min@0 bar

590 L/min@2 bar
410 L/min@4 bar
364 L/min@6 bar
318 L/min@8 bar

Voltage :100V 110V/120V/220V/230V/380V ;
Power: 2500 W ;
Pressure : Continuous 7.0 bar ;
Intermittent : 8.0 bar ;
Restart : 1.0 bar
Noise : ≤70dB(A) ;
Speed: 1440rpm / 1700rpm ;
Temperature : -5℃-40℃;
Thermal protector : 135℃

WithOvercurrent overload protector

Packing

2 pcs /carton

Dimension

360*385*337mm

Weight

35 kg
