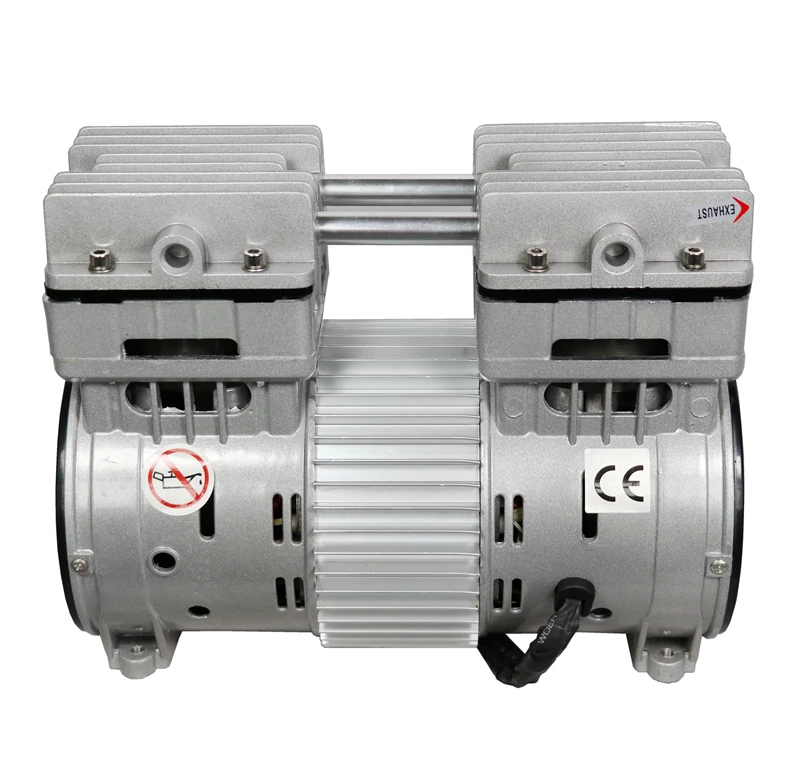

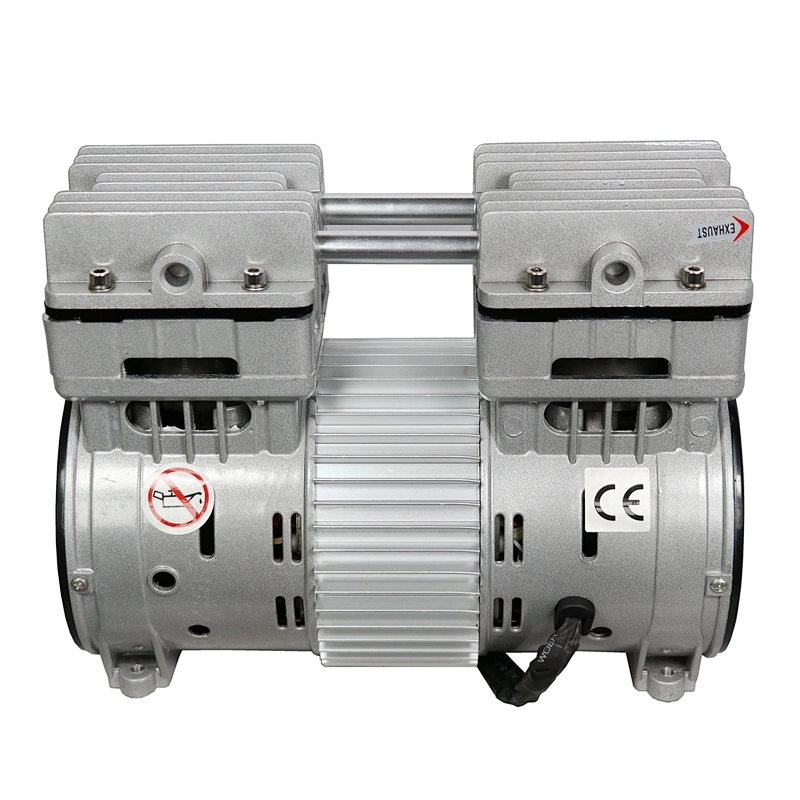

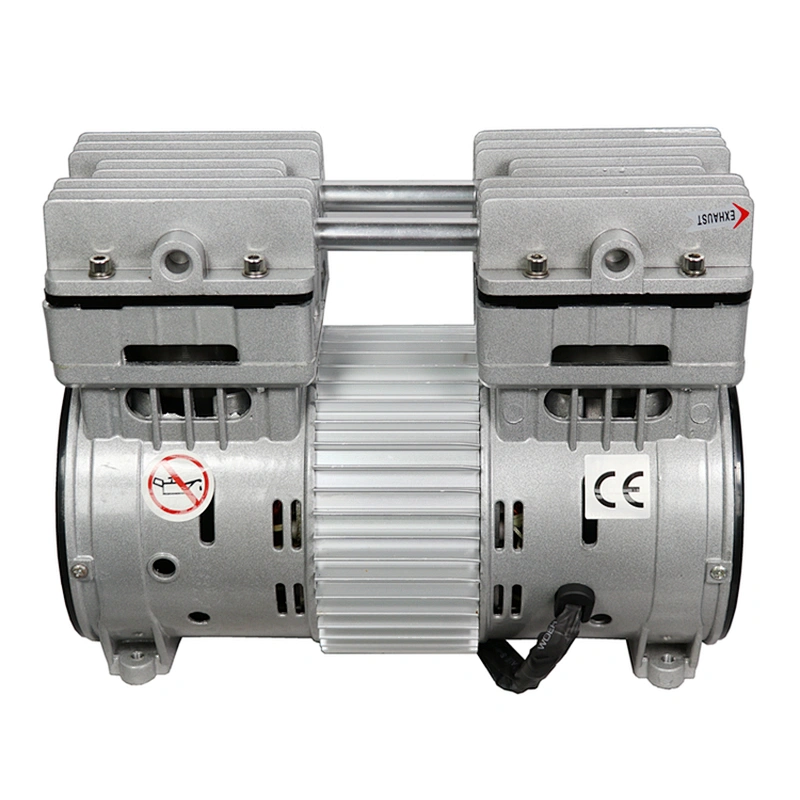

SH780 AC 220V 110V oil free air compressor pump

ITEM NO

MH780-2

Air flow rate
(L/min@bar)

Technical Specification

Name

Oil free air compressor

204 L/min@0 bar
111 L/min@2 bar
80 L/min@4 bar
78 L/min@6 bar
69 L/min@8 bar

Voltage :100V 110V/120V/220V/230V/380V ;
Power: 780 W ;
Pressure : Continuous 7.0 bar ;
Intermittent : 8.0 bar ;
Restart : 1.0 bar
Noise : ≤65dB(A) ;
Speed: 1440rpm / 1700rpm ;
Temperature : -5℃-40℃;
Thermal protector : 135℃

WithOvercurrent overload protector

Packing

2 pcs /carton

Dimension

271*128*216 mm

Weight

10 kg
